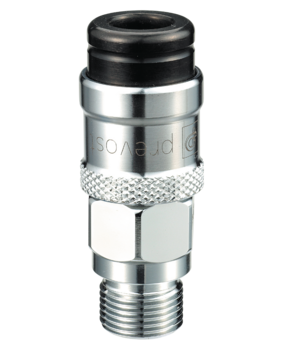

Long-profile parallel male thread coupler
Net weight (kg)
0,112
Flow rate
2050.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)
Male thread
G1/4
Material
Chromed brass
Max. output pressure
10.00 bar
Temperature
-20.00°C to 60.00°C
ID passage
7.2 mm
Profile
EURO_LONG
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Male thread
Material
Max. output pressure
Temperature
ID passage
Profile
Type of filling
BAC 071151
BAC 071152

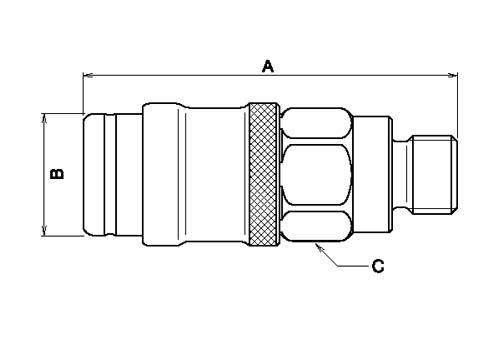

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BAC 071151
62
21
20
BAC 071152
62
21
20
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| BAC 071151 | 62 | 21 | 20 |
| BAC 071152 | 62 | 21 | 20 |
