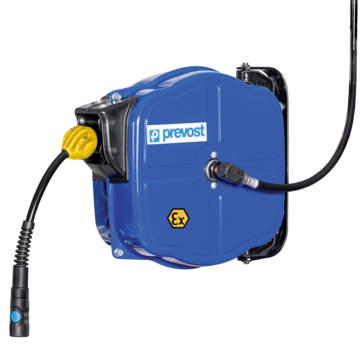

DPF series - Hose reel w/ safety retraction - Industrial type - anti-static polyurethane hose - ATEX

3494_DPFEXB_ISI
3494_DPFEXB_ISI
Net weight (kg)
7,83
Flow rate
800 l/min
Ø ext. (mm)
14
Ø int. (mm)
10
Length
12 m
Max. output pressure
12 bar
Female thread
G3/8
ID passage
6 mm
Profile
ISO 6150C

Description

Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Length
Max. output pressure
Female thread
ID passage
Profile
DPFEXB 1012CS
DPFEXB 1012ES
DPFEXB 1012IS

Dimensions

DPF_IS
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DPFEXB 1012CS
377
317
DPFEXB 1012ES
377
317
DPFEXB 1012IS
377
317

Description

Reference Net weight (kg) Flow rate Ø ext. (mm) Ø int. (mm) Length Max. output pressure Female thread ID passage Profile 3D
DPFEXB 1012CS 7,83 800 l/min 14 10 12 m 12 bar G3/8 6 mm ISO 6150C
DPFEXB 1012ES 7,88 800 l/min 14 10 12 m 12 bar G3/8 7.4 mm EUROPEAN
DPFEXB 1012IS 7,8 800 l/min 14 10 12 m 12 bar G3/8 6 mm ISO 6150B

Dimensions

Reference A mm B mm
DPFEXB 1012CS 377 317
DPFEXB 1012ES 377 317
DPFEXB 1012IS 377 317
DPF_IS
