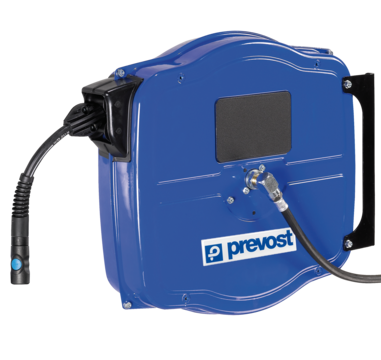

DGF Series - Large industrial type - Rubber hose

668_DGF_ISI
668_DGF_ISI
Net weight (kg)
15,446
Flow rate
500.00 l/min
Ø ext. (mm)
14.00
Ø int. (mm)
8.00
Lenght
10.00 m
Max. output pressure
12.00 bar
Female thread
G3/8
Temperature
-15.00°C to 40.00°C
ID passage
6 mm
Profile
BRITISH

Description

Reference
Net weight (kg)
Flow rate
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Female thread
Temperature
ID passage
Profile
Male thread
DGF 0810BS
DGF 0810CS
DGF 0810ES
DGF 0810IS
DGF 0810US
DGF 0815BS
DGF 0815CS
DGF 0815ES
DGF 0815IS
DGF 0815US
DGF 0820BS
DGF 0820CS
DGF 0820ES
DGF 0820IS
DGF 0820US
DGF 1010CS
DGF 1010ES
DGF 1010IS
DGF 1010US
DGF 1015CS
DGF 1015ES
DGF 1015IS
DGF 1015US
DGF 1310CS
DGF 1310ES
DGF 1310IS
DGF 1310US

Dimensions

DGF
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
DGF 0810BS
520
462
DGF 0810CS
520
462
DGF 0810ES
520
462
DGF 0810IS
520
462
DGF 0810US
520
462
DGF 0815BS
520
462
DGF 0815CS
520
462
DGF 0815ES
520
462
DGF 0815IS
520
462
DGF 0815US
520
462
DGF 0820BS
520
462
DGF 0820CS
520
462
DGF 0820ES
520
462
DGF 0820IS
520
462
DGF 0820US
520
462
DGF 1010CS
520
462
DGF 1010ES
520
462
DGF 1010IS
520
462
DGF 1010US
520
462
DGF 1015CS
520
462
DGF 1015ES
520
462
DGF 1015IS
520
462
DGF 1015US
520
462
DGF 1310CS
520
462
DGF 1310ES
520
462
DGF 1310IS
520
462
DGF 1310US
520
462

Description

Reference Net weight (kg) Flow rate Ø ext. (mm) Ø int. (mm) Lenght Max. output pressure Female thread Temperature ID passage Profile Male thread 3D
DGF 0810BS 15,446 500.00 l/min 14.00 8.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm BRITISH
DGF 0810CS 15,446 500.00 l/min 14.00 8.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150C 3D
DGF 0810ES 15,446 500.00 l/min 14.00 8.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 7.4 mm EUROPEAN 3D
DGF 0810IS 15,446 500.00 l/min 14.00 8.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150B 3D
DGF 0810US 15,446 500.00 l/min 14.00 8.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm TRUFLATE
DGF 0815BS 16,446 350.00 l/min 14.00 8.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm BRITISH
DGF 0815CS 16,446 350.00 l/min 14.00 8.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150C 3D
DGF 0815ES 16,446 350.00 l/min 14.00 8.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 7.4 mm EUROPEAN 3D
DGF 0815IS 16,446 350.00 l/min 14.00 8.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150B 3D
DGF 0815US 16,446 350.00 l/min 14.00 8.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm TRUFLATE
DGF 0820BS 17,186 260.00 l/min 14.00 8.00 20.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm BRITISH
DGF 0820CS 17,186 260.00 l/min 14.00 8.00 20.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150C 3D
DGF 0820ES 17,186 260.00 l/min 14.00 8.00 20.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 7.4 mm EUROPEAN 3D
DGF 0820IS 17,186 260.00 l/min 14.00 8.00 20.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150B 3D
DGF 0820US 17,186 260.00 l/min 14.00 8.00 20.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm TRUFLATE
DGF 1010CS 15,436 833.00 l/min 17.00 10.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150C 3D
DGF 1010ES 15,436 900.00 l/min 17.00 10.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 7.4 mm EUROPEAN 3D
DGF 1010IS 15,436 833.00 l/min 17.00 10.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150B 3D
DGF 1010US 15,436 833.00 l/min 17.00 10.00 10.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm TRUFLATE
DGF 1015CS 16,486 700.00 l/min 17.00 10.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150C 3D
DGF 1015ES 16,486 700.00 l/min 17.00 10.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 7.4 mm EUROPEAN 3D
DGF 1015IS 16,486 700.00 l/min 17.00 10.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm ISO 6150B 3D
DGF 1015US 16,486 700.00 l/min 17.00 10.00 15.00 m 12.00 bar G3/8 -15.00°C to 40.00°C 6 mm TRUFLATE
DGF 1310CS 17,4 1800.00 l/min 20.00 13.00 10.00 m 12.00 bar -15.00°C to 40.00°C 8 mm ISO 6150C G1/2 3D
DGF 1310ES 17,4 1800.00 l/min 20.00 13.00 10.00 m 12.00 bar -15.00°C to 40.00°C 7.4 mm EUROPEAN G1/2 3D
DGF 1310IS 17,4 1800.00 l/min 20.00 13.00 10.00 m 12.00 bar -15.00°C to 40.00°C 8 mm ISO 6150B G1/2 3D
DGF 1310US 17,4 1800.00 l/min 20.00 13.00 10.00 m 12.00 bar -15.00°C to 40.00°C 8 mm TRUFLATE G1/2

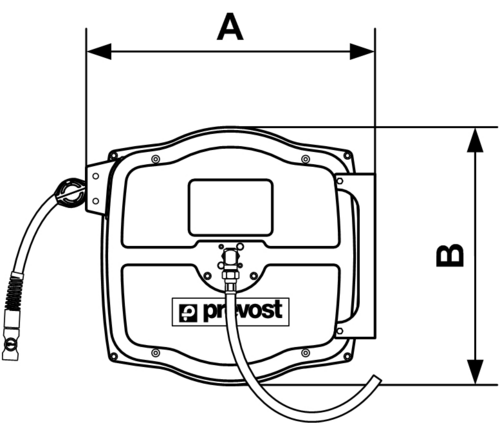

Dimensions

Reference A mm B mm
DGF 0810BS 520 462
DGF 0810CS 520 462
DGF 0810ES 520 462
DGF 0810IS 520 462
DGF 0810US 520 462
DGF 0815BS 520 462
DGF 0815CS 520 462
DGF 0815ES 520 462
DGF 0815IS 520 462
DGF 0815US 520 462
DGF 0820BS 520 462
DGF 0820CS 520 462
DGF 0820ES 520 462
DGF 0820IS 520 462
DGF 0820US 520 462
DGF 1010CS 520 462
DGF 1010ES 520 462
DGF 1010IS 520 462
DGF 1010US 520 462
DGF 1015CS 520 462
DGF 1015ES 520 462
DGF 1015IS 520 462
DGF 1015US 520 462
DGF 1310CS 520 462
DGF 1310ES 520 462
DGF 1310IS 520 462
DGF 1310US 520 462
DGF
