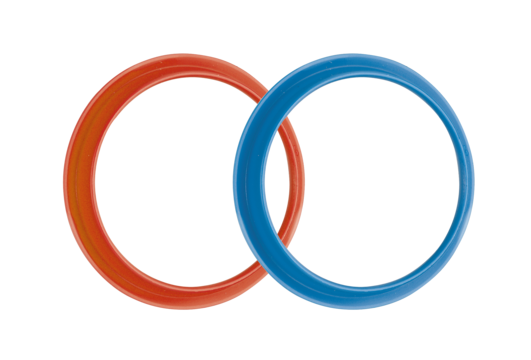

Colour identification collar Ø 8 mm

Net weight (kg)

0,0003

Color

Red;Blue

Flow rate

30.00 l/min ,ΔP = 0.50 bar)

Material

Nickel-plated brass

Max. output pressure

10.00 bar

Security

Without safety

Temperature

-15.00°C to 90.00°C

ID passage

8 mm

Type of filling

Straight-through

Reference

Net weight (kg)

Color

Flow rate

Material

Max. output pressure

Security

Temperature

ID passage

Type of filling

CPI 08BABL

CPI 08BARG

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

CPI 08BABL

CPI 08BARG

Reference	Net weight (kg)	Color	Flow rate	Material	Max. output pressure	Security	Temperature	ID passage	Type of filling	3D
CPI 08BABL	0,0003	Red;Blue	30.00 l/min ,ΔP = 0.50 bar)	Nickel-plated brass	10.00 bar	Without safety	-15.00°C to 90.00°C	8 mm	Straight-through
CPI 08BARG	0,0003	Red	30.00 l/min ,ΔP = 0.50 bar)	Nickel-plated brass	10.00 bar	Without safety	-15.00°C to 90.00°C	8 mm	Straight-through
